Launch new central locking casters wheels

After two years design and test. We are not launch our new single central locking casters. For now we have 125mm and 150mm two size.

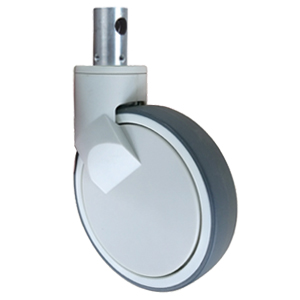

 Same as old type,new type can also load 110kg/pc for 5 inch central locking casters wheel and 150kg/pc for 6inch central locking casters

 Compare old design we have improve lock cam structure.Now the new design lock cam can be move easier & with less force.

 From outside profile New design looks more simple,it’s provide client alternative selection,user can choose the type which they prefer.
