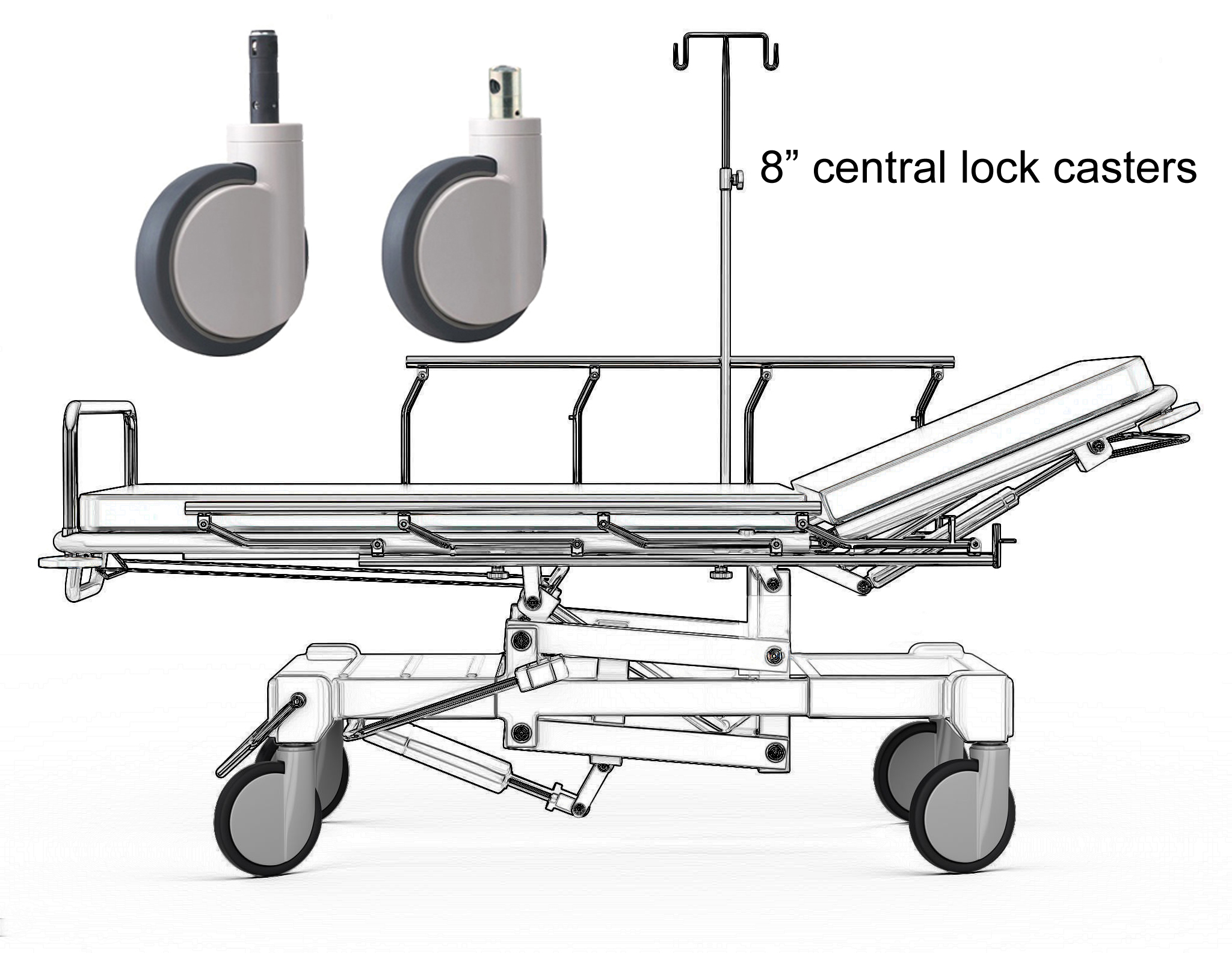

200mm central lock casters for stretcher

As we know common medical bed wheels are mostly use 5” and 6”, As they are used on indoor smooth floor.

But most of stretchers are use 200mm central lock casters, Why? Generally below 2 reasons decided the stretcher must use 200mm diameter wheels.

1.Emergency stretcher need work in outdoor that’s need wheel have bigger diameter to ensure it’s have better Passing Ability

2.In outdoor the stretcher caster wheels need face rough and uneven ground & sometimes need move in high speed,That’s need wheel have better function on impact resistance.

Our stretcher caster wheels adopt high strength metal bracket frame with high quality white color shell .Plus high quality precision mute bearings. Beside of this central lock mechanism allow people can operate whole 4 wheels brake easy at same time.

As normal our 8” central locking casters

With two kind of lock stem:Ø32 x 50mm,Ø28 x 95mm .

Load weight reach 180kg/pc.

Lock cam degree: 30 degree and 45 degree

Can match direction lock

Comments

caster with central lock

Central locking caster have 3 steps locking,Release,Direction Lock and Total Lock. For now we have two kind of standard mounting size. Ø32 x 50mm,Ø28 x 98.5mm,brake angle 45 degree We choose ABS wheel frame,PA Core and PU or TPR tread. Beside this we use total 6 sets of precision bearings to make sure the caster work more stable. Wheel diameter option : 5 inch ---Loading 110kg ,6inch---Loading 150kg, After connection by link rod all centralized locking caster wheels can be synchronous operation.Because of above features,Our centralized lock caster Mainly used as medical equipment caster,such as operation bed caster , bariatric bed caster ,and other precision device mute caster.

Medical bed central brake system and casters

In order to provide our clients one-stop service,we developed two series of medical bed central brake systems. Which include both central locking caster wheels and central brake control mechanical system. Model 1: Link,Brake Pedal and central locking caster Model 2: Die casting aluminum caster housing (support 60 x 30-2mm wall pipe) and link unit,hex rod,stamping bracket,brake bar,and central brake caster wheels. Any interesting about our medical central brake system & central locking casters. Please contact us freely. www.casterwheelsco.com ; sales@casterwheelsco.com

Wheelchair front casters and rear wheels

We are now develop a new model of wheelchair casters wheels . See below picture, 8 inch wheelchair front casters wheels and 10 inch wheelchair rear wheels . Wheel center with strong reinforce rib and made from good quality PP, And we adopt high quality polyurethane,that ensure entire wheel durable and can rotation at low noise. Front wheel size : Ø200mm x 38mm wide, Rear wheel’s size :Ø254mm x 38mm wide. Color option: Full black or black hub with Grey Tyre. Front wheelchair wheels fork can match M12x25 or M12 x 55 threaded stem. And current fork material is PA6,it can replace by aluminum fork as client needed. www.casterwheelsco.com sales@casterwheelsco.com
