Wheelchair front casters and rear wheels

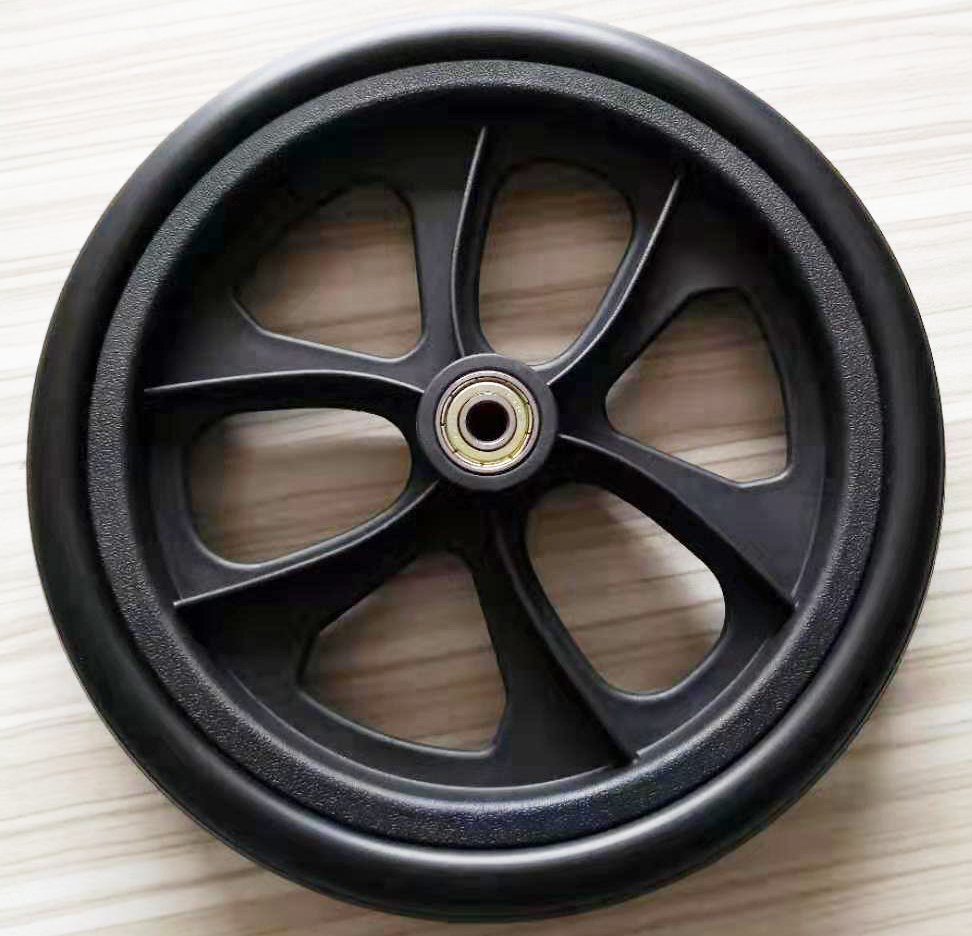

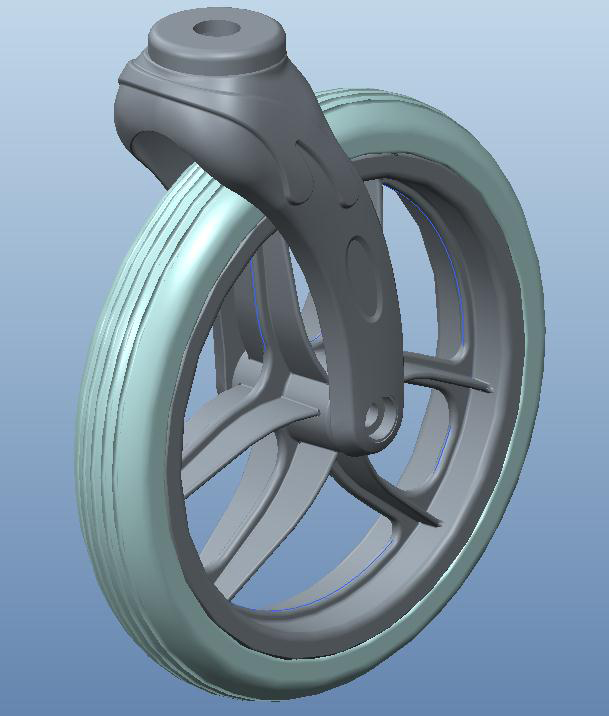

We are now develop a new model of wheelchair casters wheels. See below picture, 8 inch wheelchair front casters wheels and 10 inch wheelchair rear wheels.

Wheel center with strong reinforce rib and made from good quality PP, And we adopt high quality polyurethane,that ensure entire wheel durable and can rotation at low noise.

Front wheel size : Ø200mm x 38mm wide, Rear wheel’s size :Ø254mm x 38mm wide.

Color option: Full black or black hub with Grey Tyre. Front wheelchair wheels fork can match M12x25 or M12 x 55 threaded stem. And current fork material is PA6,it can replace by aluminum fork as client needed.

www.casterwheelsco.com

sales@casterwheelsco.com

Comments

caster with central lock

Central locking caster have 3 steps locking,Release,Direction Lock and Total Lock. For now we have two kind of standard mounting size. Ø32 x 50mm,Ø28 x 98.5mm,brake angle 45 degree We choose ABS wheel frame,PA Core and PU or TPR tread. Beside this we use total 6 sets of precision bearings to make sure the caster work more stable. Wheel diameter option : 5 inch ---Loading 110kg ,6inch---Loading 150kg, After connection by link rod all centralized locking caster wheels can be synchronous operation.Because of above features,Our centralized lock caster Mainly used as medical equipment caster,such as operation bed caster , bariatric bed caster ,and other precision device mute caster.

Medical bed central brake system and casters

In order to provide our clients one-stop service,we developed two series of medical bed central brake systems. Which include both central locking caster wheels and central brake control mechanical system. Model 1: Link,Brake Pedal and central locking caster Model 2: Die casting aluminum caster housing (support 60 x 30-2mm wall pipe) and link unit,hex rod,stamping bracket,brake bar,and central brake caster wheels. Any interesting about our medical central brake system & central locking casters. Please contact us freely. www.casterwheelsco.com ; sales@casterwheelsco.com

Advantages Of Twin Medical Casters And How Are They Used

Choosing the right kind of medical caster is essential for the medical industry because it is an important part of many medical types of equipment. Medical Caster wheels are used in various ways in a hospital or doctor’s office, from stretchers to diagnostic equipment. And having the right caster on hand will make all the difference. Medical casters are manufactured differently from casters used in other facilities such as factories and warehouses since the needs are different. Advantages Of Twin Medical Casters : Many hospitals around the nation are now considering double medical casters or twin medical cart casters. Double casters have many advantages over single casters, and medical-grade casters are ideal for a hospital environment. Here are some of the advantages twin medical casters have to offer: Can Carry More Load Right off the bet, the most significant advantage of double casters is that they can carry more weight than single casters without compromising on the siz

Medical caster wheel,central lock caster,hospital bed caster wheels
