2018 model hospital and medical bed caster wheels

Hospital and medical bed caster wheels with direction lock and total brake

A unified entity without bolts for the shell forming and save anti-winding function of the shell
Stainless spring can 10000 times braking testing,wheel made by PP core + TPR tread with precision ball bearing.
Wheel Material
TPR+PP
Wheel Diameter
75mm
100mm
125mm
Size
3 inch
4 inch
5 inch
Tread Width
32mm
32mm
32mm
Bearing Spec.
Ball Bearing
Overall Height
115mm
138.5mm
164.5mm
Round Stem Size
Ø11*19.5mm
Ø28*45mm
Ø28*45mm
Load Capacity
80kg
100kg
120kg
Offset
30mm
30mm
32mm

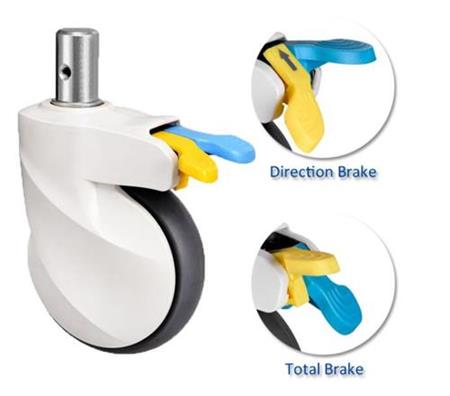

BRAKES FUNCTION
     Medical castor wheel with direction and total lock , Press yellow pedal caster available to move at straight line.When braked the blue pedal, the caster will be locked both turning and rotation.

Features:
Easy installation
       Floor protect
       Anti-abrasion, shock absorber, impact resistance function

Any interesting please contact us freely Via: sales@casterwheelsco.com ; www.casterwheelsco.com
