125mm and 150mm central locking casters wheels

New developed central locking will launch market in 2016. Compare with old design. The new model
* Caster wheel adopt 6mm thick steel frame and plane bearing.
* Excellent quality,Longer use life with More competitive price.
* High Quality rough TPU wheel tread with wear proof.
* Smart design Improve the Impact resistance.
* 360 degree ABS seal cover

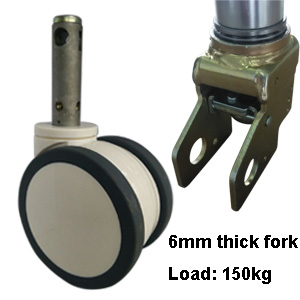

* Load weight: 150kg/pc. * Net weight of caster: 2kg.  * 2 step (45o) or 3 step (30o) brake
* Load height: 163mm     * Swivel radius :111mm        * Wheel size: Ø150mm x 62mm
* 150mm single wheel central locking casters Adopt 2.5mm metal frame with ABS cover. (125mm is available)
* Load weight 130kg
* Good quality and competitive price.
For more info please call us or send email: sales@casterwheelsco.com
www.casterwheelsco.com
